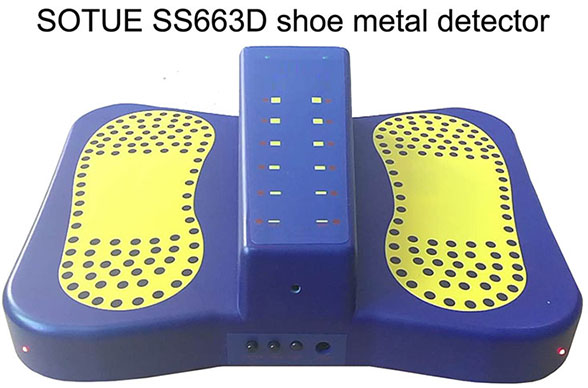

SOTUE SS663D inspection shoe metal detector

The places which shoes are not easy to take off, SOTUE SS663D inspection shoe metal detector can quickly inspected dangerous articles which are hidden in shoes. Such as: blade, small saw blade, hairpin, all kinds of precious metals and so on. It can be used in conjunction with hand-held metal detectors for security inspection, it is widely used in airport, court, prison, customhouse, exhibition site, embassy, factory, amusement place and so on.

1. sensitivity adjustment. can adjust the high or low sensitivity, can eliminate inherent metals (such as spikes ect.) in shoes.
2. sound and light alarm: when the metal is detected, the buzzer and the alarm lamp simultaneously give out alarms.
3. Left and right feet at the same time can be detected: by the alarm lamp display, you can distinguish which shoe is hiding metal. You can quickly finish the security inspection work.
4. Count function: display alarm count.

Technical data:
1. Operating temperature: - 5℃ ~ +55℃.
2. Working humidity: 5% ~ 95%RH.
3. Maximum load: 155kgs.
4. Net weight: 1.65kg
5. Detection Distance:
Distance of detection clip: 300 mm.
Distance of detection RMB one Coin: 40 mm.
Distance of Detecting art knife: 95 mm.
6. Size: Length 399 mm x width 378mm x height 99 mm.
7. Power supply: 110V~ 220V (±10%). 50 / 60Hz, DC 15V.

Technical standards:
1. Conform to EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013 product safety international standard. Conform to EN 55011:2009+A1:2010 and EN 61326-1:2013 product safety international standards. Conform to EN61000-3-2:2014 & EN61000-3-3:2013 product safety international standards.
2. Conform to EN 61000-6-1:2007 product immunity international standard and radiation conforms to EN 61000-6-3:2007 +A1:2011+AC:2012 product emission international standard.
3. Conform to existing walk-through metal detector GB15210-2003 standard. Conform to U.S.A. FAA 3-gun testing standards and NILECJ-0601-00 safety standards.
4. Conform to ECAC international Security standard. Conform to U.S.A. Transportation Security Administration (TSA) standard.
