Product

                                       SOTUE TD816 hunting thermal imaging aim telescope
Application:
SOTUE model No. TD816 thermal imaging aim telescope which is installed on a gun such as a rifle is a long-wave infrared and magnified dedicated telescope for day and night work, it is an advanced and very helpful equipment for hunting.
TD816 telescope can pass through total darkness, haze, dust, fog and smoke to detect targets, and help to see through various animal camouflages. it installs an international stnadard 1913 picatinny rail under it, thus it can fit to install on a gun for hunting, it can help to shoot the animals and other targets.
Features:
3.5X optical lens. E-zoom 7-14X magnification. Light weight and compact design. Waterproof. Dust-proof and shockproof. 1913 Picatinny installation.




Technical Details:
Type: Uncooled. Sensor: 640 x 480 px. Image Size (output resolution): 800 x 600 px. Display: Color OLED. Field of View: 8.3 x 6.2. Optical Magnification: 3.5X. Distance of the human detection:1800 m. Net weight: 1.06kg. Reticle Color: White & Black. Dimension: 308 x 80 x 98 mm. Sharpness adjustment: Automatic. Lens system: 75 mm. Polarity control  White hot / Black hot / Multiple Color Modes.
Battery type: CR123 battery, battery (rechargeable or dry battery): 7 ~ 8 hours work. Mounting bracket: Picatinny rail.
Technical standards:
1. Conform to EN 60950-1:2006+A11:2009 international safety standard and EN 61010-1:2001international security standard.
2. Conform to EN61000-6-2:2005 product immunity international standard. Conform to international military security standards. conform to MIL-STD-962 practice and test method standard.

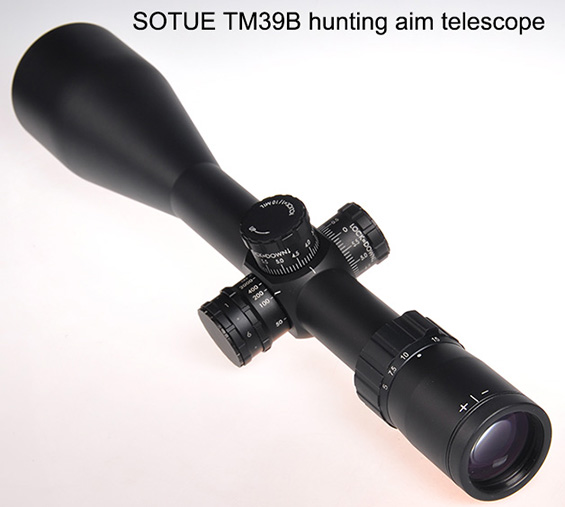

                                                   SOTUE TM39B hunting aim telescope
Application:
SOTUE model No. TM39B hunting aim telescope which can be installed on a gun such as a rifle is a magnified dedicated telescope, it is an advanced and very helpful equipment for hunting.
TM39B telescope can install an international stnadard rail under it, thus it can fit to install on a gun for hunting, it can help to shoot the animals and other targets.
Features:
Light weight and compact design. Waterproof. Fogproof. Shockproof. Ocular Focus. Side Focus. Parallax Adjustment.
Technical data:
Magnification Type: Fixed. Magnification (Variable): 5X ~ 25X. Objective Lens Diameter: 58 mm. Ocular Lens Diameter: 36 mm. Body Tube Diameter: 30 mm. Length: 382 mm. Parallax Adjustment Range: 50yds-∞. Click Value: 0.125 MOA. Reticle Type: Etched. Eye Relief: 101.2 mm. Exit Pupil: 10-2.2 mm. Field of View: 19.5FT ~ 3.9FT. Ocular Outside Diameter: 43.3 mm.


Technical standards:
1. Conform to EN 60950-1:2006+A11:2009 international safety standard and EN 61010-1:2001 international security standard.
2. Conform to EN61000-6-2:2005 product immunity international standard.
