US123S and ST119VS vehicle underside video inspection bomb / explosives and drug systems, ST116A and ST113 under vehicle search mirror with wheels & lights, as follows:

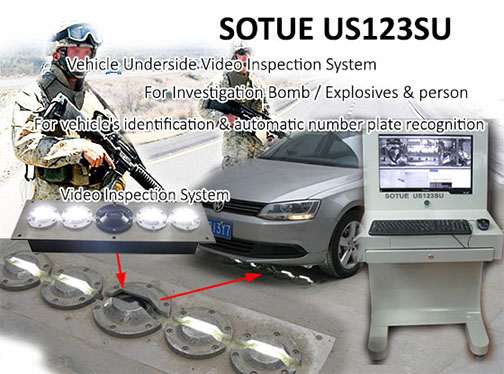

                   SOTUE US123SU vehicle underside inspection (bomb and person) system
Application:
SOTUE US123SU system product is a kind of security inspection vehicle underside system, inspect if there is illegal changing underbody, hiding drugs & bombs, other prohibited items or any person in the vehicle's underbody, the product has a high level design of security protection, can work under any harsh environment.

US123SU system products have been widely used in the airports, seaports, customs, prisons, military areas and so on to check the vehicles' chassises and undersides.


 US123SU system products have been exported to Iraq, Libya, Nigeria, Spain, Malaysia, Russia, Vietnam, Japan, Thailand, India, Mexico, Italy, Brazil, France, South Africa, Philippines, Oman, Syria, Turkey, etc. for local clients' uses.


 Features:
1. Constitute: A computer console, a vehicle's underbody detector, power supply control box, a number plate recognition camera.
2. Use digital scanning camera, have an extreme image descrimination and clarity.


 3. The complete imaging of vehicle's underbody, without any omission, and have a clear image which is complete without distortion, can clearly observe an object which is not less than 2 mm in diameter.


4. IP68 high level security protection, anti pressure in the quake, used in any climate environment.
5. Can be on site to prepare inspection process to meet the needs on site.
6. Have multi-channel image surveillance and video function.


 7. Support image recognition or RFID technology for vehicle's identification and automatic number plate recognition
8. Optional: very strong expansion ability, can easily achieve a variety of system linkage control, (such as: anti collision system, road gate, etc.).
9. Optional: support multiple devices' network control functions.


Technical data:
Image resolution: 2048 pixels. Inspection system scanner's dimension: 1102 mm (L) x 281 mm (W) x 205 mm (H).

Speed: 1 ~ 61 km/h.  Load bearing weight of inspection system scanner: 50 tons (pressed on its surface).

Auxiliary lighting: 100 W. Work voltage: AC 110 ~ 220 V (±10%), 50/60 Hz. Communication port: RS 232 / RS 422.

Storage temperature: -40° ~ +75°. Operating temperature: -15° ~ +60°. Waterproof grade: IP68 to meet all weather work.

Vehicle requirement specification:

Vehicle width: Max. 3.95 meters.

Vehicle length: Max. 28 meters.


Technical standards:
1. Conform to EN60950-1:2006+A11:2009 international product safety standard and conform to EN55011:2009 and EN61326-1:2006 international standards. 2 . Conform to U.S.A. FAA gun testing standards and security product standards.

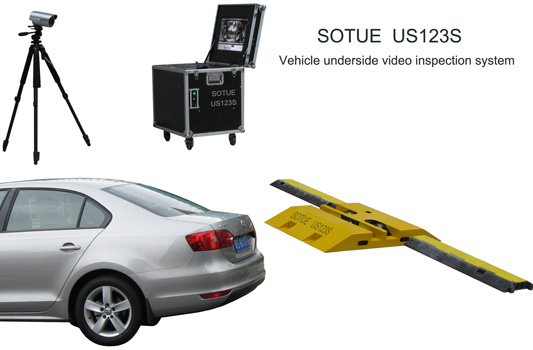

                       SOTUE US123S vehicle underside video inspection system
Application:
US123S system has the high protection grade design, can work in harsh environments, is widely used on the road, airport, troops, bus station, public security places, customhouse, parking, and other security departments for security checks and so on.

It is a set of automatic acquisition vehicle underside image, display image and contrast image management system. It can effectively prevent the vehicle underside hiding bombs, weapons, biological & chemical dangerous goods and dangerous people into an important place, can also prevent the vehicle underside carrying drugs and smuggling illegal immigrants & materials to pass through checkpoints.

System form: A laptop computer + a control device + a camera + a video inspection device. All its installation and operation are very simple and easy.


 Convenient installation: the control device host is composed of a laptop computer and a portable control device, which is installed in a portable device box, it's easy to be carried.

Feature:
1.The use of advanced digital imaging system, high resolution, high definition, complete chassis imaging. Very high automatic software operation, its operation is very simple.

2. Search & detect a vehicle in motion without stopping, its speed adapts to a wide range.

3. Dynamic video scene image record. Chassis images can be stored and played back.

4, disposable scanning imaging. The digital array technology. Environmental use: IP66 high protection grade design, waterproof and dustproof.


Technical data:
1. Image resolution: 2048 pixels. Maximum scan rate: 18 kHz. USB communication data interface. Video inspection device's size: 552 mm x 363 mm x 88 mm. Weight: about 12 Kgs.

Speed detection: < 30 km/h, have the best images. Field of view: better than 160 º. Power supply: DC12V, 6A, AC 110 ~ 220 V (±10%), 50/60Hz.


 2. Lighting: LED light, 30 W. Image resolution (speed 30 km/h): the highest resolution is better than 0.5 mm / pixel. Environment temperature: - 10 ºC ~ + 60 ºC.


Technical standards:
1. Conform to EN60950-1:2006+A11:2009 international product safety standard and conform to EN55011:2009 and EN61326-1:2006 international standards. 2. Conform to U.S.A. FAA gun testing standards and security product standards

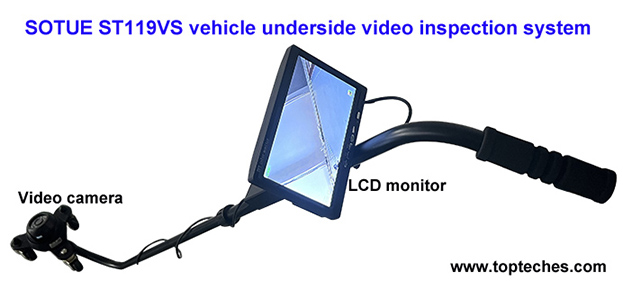

         SOTUE ST119VS portable vehicle underside video inspection system

Application:
SOTUE ST119VS portable vehicle underside inspection system is widely used on the roads, airports, bus stations, troops, public security places, customhouses, parking lots and other security departments for security checks.


ST119VS system is a set of automatic acquisition vehicle underside images, display images and storage information as a whole. It can effectively prevent the vehicle underside from hiding bombs, weapons, dangerous goods and dangerous people into an important place and also prevent illegal immigrants and materials to pass through checkpoints.


Feature:
Advanced digital imaging system, high resolution, high definition. Very high automation, its operation is very simple.
Its display screen is not only a general LCD display function, but also a multifunctional multimedia player.
When ST119VS system device is working, its entire work process can be recorded, and the recorded files can be saved to a computer or other storage medium through its USB interface on the device to make it convenient to save data.

Technical data:
Camera:
1/3 inch, 420 wire, SONY CCD.
Power supply: DC 12V.
Automatic infrared night vision function.


Display screen (DVR):
Internal memory card: 16GB (standard), optional: 32G.
Screen size: 7 inches.
Resolution: 1024 x 600.
Power supply: DC 12V.


Power charger: 12.6V / 1000mA.
Power supply: AC 110 ~ 220 V (± 10%), 50/60Hz.
Work time: 3 ~ 4 hours (fully charged).
Length: 120 cm ~ 140 cm.


Technical standards:
1. Conform to EN60950-1:2006+A2:2013 international product safety standard and conform to EN55011:2009 and EN61326-1:2006 international standards.   2. Product conforms to international safety standard and security product standard.

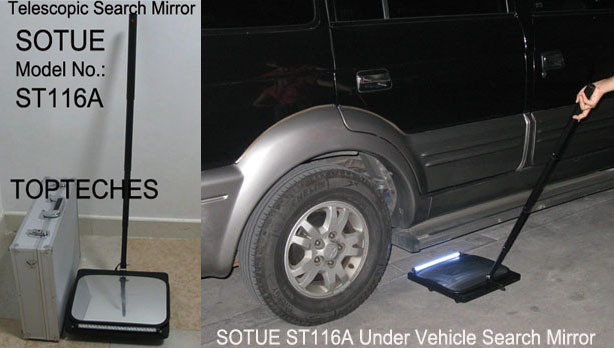

ST116A telescopic search mirror with wheels & a light, under vehicle search mirror with wheels & a light

Application:
For vehicle bottom inspection operation, SOTUE ST116A mirror is widely used to search for the bottoms of a table, a chair, a vehicle and so on. First, the military and police use it for the search examination in the implementation of explosives and drugs. Now in the beginning to play roles in the more normal fields, we have years of experience in manufacturing search mirror product.

ST116A search mirror was used widely for the security inspection of sports, Major conferences, local police, hotels and factories and so on. Now exceed three kinds of styles, different optional accessories, it can fully meet every walk of life in search work in the field of different requirements.


Features:
1. Mirror: 30×30 cm high-intensity shatterproof acrylic mirror,convex-shaped double amplification effect, it is 1/2 weight of the same general glass mirror size, has a certain toughness, not easily broken, safe, durable, and its brightness is like the glass mirror. Firm plastic gum at the bottom of the siege can effectively prevent collisions caused by damage to the mirror.


2. Grip: telescopic pull rod, it has four wheels which can turn 360 degrees for design to be the maximum in-depth exploration into the undersides of vehicles & goods for inspection, using high-quality metal structure with many high-intensity processing, Light weight, strong, beautiful. Its surface uses the baked outdoor paint of the dust-free workshop to deal with it, in a long-term use it is not faded. No smell, not harmful to human. Equip a black good sense grip for a long time operation.


3. Light Source: the LED light source. LED lights have long life, high brightness, optional: disassembled as a light work and so on. According to the customer demand, they can choose the right light source.


4. Power supply: built-in rechargeable lithium-ion battery, charge it about 2 hours for 4 ~ 5 hours work. Economic, convenient and practical. The package is equipped with standard power supply adapter.
5. Carry: the pull rod of our products can be used to fold and be fixed, a person will be able to take it to walk. It can be equipped with a portable bag or case, do not use it, it is packed away. Materials accord with the overall Rhos technology standards and is suitable for export to other countries.

Technical data:
1. Net weight: 2.9kgs.      Gross weight with a portable case: 5.6kgs.      Length: 59.6 cm ~ 131.6 cm.


2. Portable case size: 53 x 42 x 15.2 cm.  Power supply adapter: AC 110 ~ 220 V (±10%), 50 ~ 60 Hz.


Technical standards:
1. Conform to EN60950-1:2006+A2:2013 international product safety standard and conform to EN55011:2009 and EN61326-1:2006 international standards.  2. Product conforms to international safety standard and security product standard.

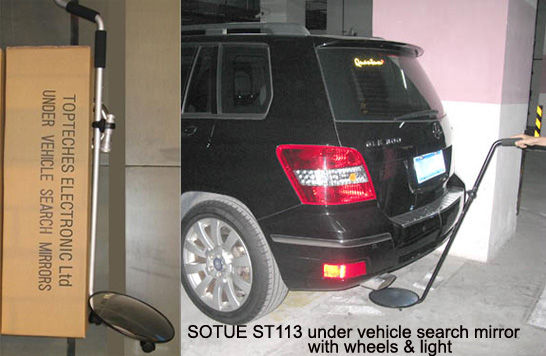

    SOTUE ST113 under vehicle search mirror with wheels & a light, search mirror with wheels & a light

Application:
Long time vehicle bottom inspection operation design. To be used to search for the bottoms of a table, chairs, a vehicle etc.. Firstly the military and police use it for the search examination in the implementation of explosives and drugs. Now in the beginning to play roles in the more normal fields, we have years of experience in manufacturing search mirror products.


SOTUE ST113 search mirror was used widely for the security inspection of sports, major conferences, local police, hotels, factories and so on.Now exceed three kinds of styles, different optional accessories, it can fully meet every walk of life in search work in the field of different requirements.

Features:
1. Silvery white aluminum alloy rod materials, light weight, high strength, suitable for operation for a long time. EVA handle design, comfortable feel. Ergonomic protection elbow design for comfortable work.
2. 30 cm diameter, large convex mirror made by acrylic material, the use of safety, light weight.


3. The design that can spin the ball wheel, adjust mirror surface direction at random.
4. Mirror with high-strength plastic protection against bumps.


5. Lower face design for low into the chassis of the vehicle and objects.
6. Equipped with removable lamp holder, at night a lamp can work.


Technical data:
 Net weight: 1.7kgs.  Gross weight with a portable bag: 1.75kgs.  Length: 132cm.  Mirror size:  30cm in diameter.


Technical standards:
1. conform to EN 55011:2009 and EN 61326-1:2006 international standards.   2. Product conforms to international safety standard & security product standard.
