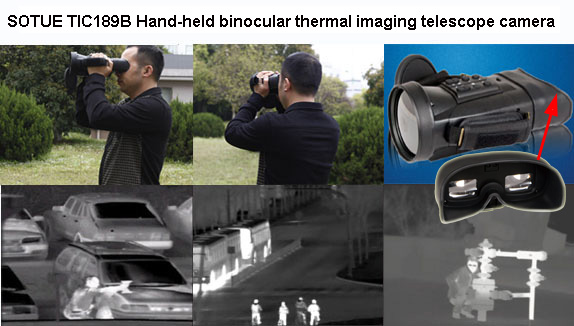

SOTUE TIC189B hand-held binocular thermal imaging telescope camera
Application:
SOTUE model No. TIC189B hand-held
binocular thermal imaging military telescope is a hand-held thermal imaging
camera with photographing video functions, uses 384 × 288 uncooled focal plane
detector with small size, light weight, rugged, easy operation, environmental
adaptability, etc., it can complete all-weather surveillance, anti-smuggling and
search requirements in a variety of harsh environments, widely used in police
system and army.
Feature:
1. Amorphous silicon uncooled FPA
detector. Full-time display. Display external monitor and Binocular OLED
display.
2. Wide FOV, observation distance is farther, binocular observation
is more comfortable and more convenient.
3. Record image function, can
photograph images. E-fold focus. Focus: Manual and Automatic. Function: Gain
Brightness.
4. OLED binocular display pixel 800 x 600 resolution.
Encapsulation: IP67 protection grade, military grade.
5. Manual and
Automatic. Enhancement. Electronic zoom: 2X. Photo/Video record. Storage card
memory: 6GB, or optional.
6. USB port: Transmit data/images to a computer for
storage and analysis. Video out: CCIR and PAL. Remote control: RS422. Optional:
can connect to a monitor display.
Video function: built-in record image
function, it is also able not to need to connect external video equipments,
auto-play function by itself.
Technical data：
1. Display pixel 800 x 600.
Lens 75mm / F0.8. Image Storage: Storage Capacity 1000 image. File format: JPEG
and AVI. Sensor spectral range: 8 - 14 µm.
2. Environmental: Operating
temperature: -30℃ ～ +50℃. Storage temperature: -40℃ ～ +60℃.
3. Consumption: ≤
4.5W. Video output: PAL, 75Ω. Weight ≤ 1.52 Kg. Dimension: 263（L）mm × 128（W）mm ×
113（H）mm.
4. Day and night vision detection distance: 1880 m for people (
1.8*0.5 m ), 2400 m for car ( 2.3*2.3 m ).
Recognition distance: 830 ~
860 m for people ( 1.8*0.5 m ), 1150 ~ 1200 m for car ( 2.3*2.3m ).
5.
Rechargeable Lithium Battery: continuous work for 3 hours. Power Supply: DC
10-15V, car cigarette lighter, 110 ~ 220V(±10%)
Technical standards:
1. Conform to EN
60950-1:2006+A11:2009 international safety standard and EN 61010-1:2001
international security standard.
2. Conform to EN61000-6-2:2005 product
immunity international standard. Conform to international military security
standards.
