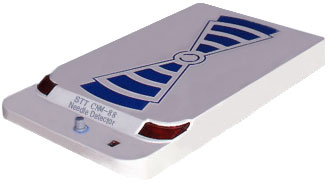

                                   STT CNM-88 platform type inspection needle detector



Application:

STT CNM-88 table top type needle detector is widely used to detect toys, shoes, hats, non-woven products, high elastic cotton clothing, paper, plastic plate and other items.



Features:

1. Use high sensitive technology. Ten level sensitivity adjustment, magnetic induction.

2. Alarm: sound & two automatic alarm signal lights so that you can find the broken needle easily. Anti-static cover, SMD technology. Touch-button integrated control panel.


3. Detection distance: iron pin diameter 0.7 x 25 mm (L), its detection distance is about 8 cm height on the detector surface. 8 LED detection location display is easy to locate the place of the broken steel needle.


Technical data:
1. Power supply: AC 110~240V, 45~65Hz , desingned for universal AC power supply (full range). Rated output: Appr. 10W. Weight: 11Kg.


2. Detection sensitivity: FeΦ ≥ 0.8~1.0 mm. Volume: 690 mm (L) x 375 mm (W) x 83 mm (H). Detection surface size: 130 mm (W) x 490 mm (L).


Technical standards:
1. Conform to EN 60950-1: 2006+A11: 2009 electrical product safety international standard. Anti-jamming conforms to EN 50082-1 international standard.


2. Conform to EN 61000-3-2:2006+A2:2009 and EN 61000-3-3: 2008 product safety international standards. Conform to EN61000-6-1:2007 product immunity international standard. Radiation conforms to EN61000-6-3:2007 product emission international standard.


3. UKCA international safety standard certificates.  European CE & EMC international security standard certificates.
