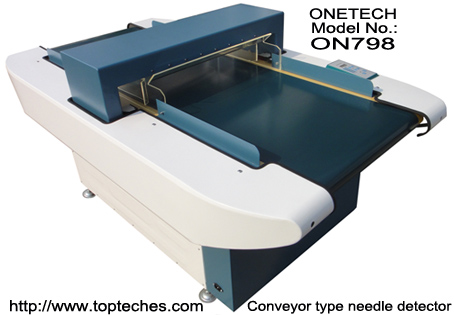

ONETECH ON798 tunnel type needle detector, conveyor type needle detector

Used widely to inspect toys, shoes, hats, non-woven products, high elastic cotton clothing, paper and plastic plate, to inspect sewing products, food products, pharmaceutical products, chemical products, rubber products & other detection items, it can be installed directly in a production line.

Technical data:
Detection adjustment: automatical adjustment. Alarm method: Buzzer & Light. Power supply: AC110 ~ 240V, 50 ~ 60Hz. Rated output:  Appr. 140w. Weight: Appr. 200kg. ( OPTIONAL: Tunnel detection width:  600mm, 700mm, 800mm, 900mm, 1000mm, 1100mm, 1200mm, 1300mm, 1500mm for selection )

Total dimension:  1850 mm (L) x 1010 mm (W) x 1050 mm (H).   Tunnel inspection width:  600 mm

Tunnel detection height                               Tunnel detection Sensitivity
           100mm                                                    Feφ≥0.8mm
           120mm                                                    Feφ≥0.8mm
           150mm                                                    Feφ≥1.0mm
           200mm                                                    Feφ≥1.2mm
           250mm                                                    Feφ≥1.5~2.0mm
           300mm                                                    Feφ≥2.0 ~ 2.5mm
           350mm                                                    Feφ≥2.5 ~ 3.0mm

           400mm                                                    Fe = 3.5 ~ 4.5mm


ON798 series products adopt the international advanced technology and micro-chip digital signal processing technology, adopt know-how of high sensitivity and intelligentized location show and counting system. Products have very strong anti-interference capability, to suit more complex environment use.

1. ON798 LCD control panel gives you a good operation environment. Real time level display. An automatic counter function and automatic checking function.The conveyor belt is made from nonpoisonous material. 2. When sensors detect a broken needle or a iron piece,an alarm signal can be given out. It is designed for universal AC power supply (full range). 3. When the broken needle or other magnetic metal is found, the machine gives out an alarm, in the same time, the conveyor belt stops & return automatically.If the alarm is given out normally, the probe will give out a light to indicate a object place where the broken needle or other magnetic metal is. 4. Twelve grades sensitivity adjustment. 5. Optional function: printing reports with a printer.

Technical standards:
1. Conform to EN 60950-1:2006+A11:2009 product safety international standard. 2. Radiation conforms to EN 61000-6-1:2007 product emission international standard. conforms to EN 61326-1:2013 product international safety standard.
