Product

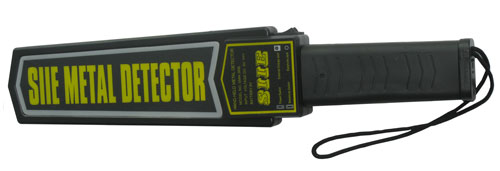

             SIIE SMH-368L high sensitive hand-held metal detector, portable silver & gold detector

Application:
SMH-368L high sensitive hand-held metal detector can detect persons, hand luggage, mail and parcel and so on, can detect all kinds of alloy, is able to locate a needle or minimum metal at a close distance, locate IED-device, weapons, parts of weapons, ammunition, bombs, explosives in metal covers etc.. It is widely used in loss prevention and security inspection, widely used in airport, court, prison, customhouse, exhibition site, bank, church, embassy, factory, amusement place and so on. It can detect & find drugs and narcotics packed with Tin Foil paper.

It is also possible to find and locate these objects like the camouflaged mines, electronic igniting mines and plastic mines which contain metal articles, it can eliminate the ground effects sufficiently. Conform to all current international security standards.



Feature:
Ergonomic design. Have with LED alarm, vibration alarm or acoustic signal alarm. Alarm ways: red LED light signaling and vibration signal or red LED light signaling  and acoustic signal. When its battery is the lowest level, warning lamp LED will alert, (need a replacement battery). It has a de-sense button and can tightly control detection pattern to allow the efficient weapon screening near floors containing rebar.

Self-calibration: It can provide a scanning area with 360 ° coverage and scan from head to feet.

Normal use: a 9V dry battery. (Add cost) optional: a 9V rechargeable battery: its must use a standard 9V rechargeable battery that is included in the offer.

Technical data:
Operation voltage:         7V-9V. Low battery indicator.
Operation humidity:        0~95% without condensation. Operation temperature:  -20℃ to 60℃. Storing temperatures: -20℃ to 60℃.
Visual and sound:          LED Red Light ( Alarm ).  LED Green Light (Standby, Normally).

                                      Sound or Vibration and Red Light are simultaneous alarms
                                      Sound alarm: Speaker or Earphone, (Earphone attachment option).

Control units:                 ON / OFF Switch. Low sensitivity switch. Sensitivity adjuster (button). When detecting, automatic adjustment.
Detection distance:        Needle is detected. A pin: 20 mm. One dollar RMB coin: 90 mm. Small 77 Pistol: 160 mm. Knife: 140 mm.
Dimension of unit:          410 mm (L) * 86 mm (W) * 46 mm (H). Color: Black
Low sensitive switch:     Detector only responds to a bigger metal. Optional:
Can detect 0.3 ~ 0.5g gold flakes.
Weight of unit:                About 390g including a 9V battery.  Net weight: about 340g excluding a battery.
Attachment:                    Holster (Optional). Rechargeable battery (Optional). battery charger (Optional)



Technical standards:
1. Conform to EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013 product safety international standard. Conform to EN 55011:2009+A1:2010 and EN 61326-1:2013 product safety international standards. Conform to EN61000-3-2:2014 and EN61000-3-3:2013 product safety international standards. 2. Conform to EN 61000-6-1:2007 product immunity international standard and radiation conforms to EN 61000-6-3:2007 +A1:2011+AC:2012 product emission international standard. Be harmless to pregnant women and magnetic recording materials. 3. Conform to existing metal detector GB15210-2003 standard. Conform to U.S.A. FAA 3-gun testing standards and NILECJ-0601-00 safety standards. 4. European CE and EMC international security standard certificates, conform to ECAC international Security standard. Conform to U.S.A. Transportation Security Administration (TSA) standard. Conform to the standard Mil-Std-810F (drop test) Method 516.5, Procedure II and IV. 4. Conform to CSA standard.

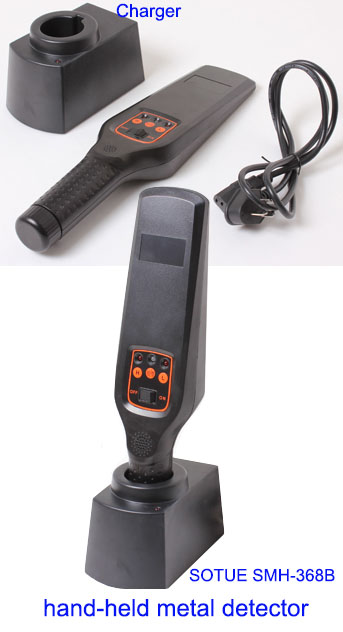

                                                SOTUE SMH-368B hand-held metal detector


Application:
SMH-368B high sensitive hand-held metal detector can detect persons, hand luggage, mail and parcel etc., can detect all kinds of alloy, is able to locate a needle or minimum metal at a close distance, to locate IED-device, bombs, weapons, parts of weapons, explosives in metal covers etc..
It is widely used in airport, court, prison, customhouse, exhibition site, bank, church, embassy, factory, amusement place etc. for loss prevention and security inspection
Feature:
Ergonomic design. Have LED alarm, vibration alarm or acoustic signal alarm. When its battery is the lowest level, warning lamp LED will alert. Two grades: Low sensitivity and high sensitivity. Provide OEM production.
Technical data:
Power Supply: 9V dry battery,  optional: 9V Ni-MH battery with a charger. Indicator of a low battery.
Work time with Ni-MH battery: 40 hours max., optional with alkaline battery: 150 hours max.
Operating temperature: -25°C ~ 65°C.
Relative humidity: 0 ~ 95% without condensation.
dimension: 342 mm x 81 mm x 54 mm.
Detection distance:  a needle can be detected; 60 mm for 1 dollar RMB coin;
110 mm for a small 77 Pistol; 90 ~ 100 mm for a small knife.
Technical standards:
1. Conform to EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013 product safety international standard. Conform to EN 55011:2009+A1:2010 and EN 61326-1:2013 product safety international standards. Conform to EN61000-3-2:2014 and EN61000-3-3:2013 product safety international standards. 2. Conform to EN 61000-6-1:2007 product immunity international standard and radiation conforms to EN 61000-6-3:2007 +A1:2011+AC:2012 product emission international standard. Be harmless to pregnant women and magnetic recording materials. 3. Conform to existing metal detector GB15210-2003 standard. Conform to U.S.A. FAA 3-gun testing standards and NILECJ-0601-00 safety standards.

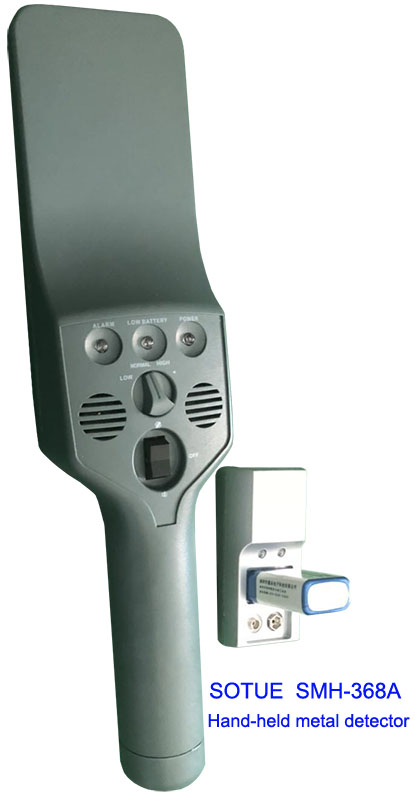

                                                 SOTUE SMH-368A hand-held metal detector

Application:
SMH-368A high sensitive hand-held metal detector can detect persons, hand luggage, mail and parcel etc., can detect all kinds of alloy, is able to locate a needle or minimum metal at a close distance, to locate IED-device, bombs, weapons, parts of weapons, explosives in metal covers etc..
It is widely used in airport, court, prison, customhouse, exhibition site, bank, church, embassy, factory, amusement place etc. for loss prevention and security inspection.
Feature:
Ergonomic design. Have LED alarm, vibration alarm or sound signal alarm. When its battery is the lowest level, a warning LED light will give an alarm. Three grades: Low sensitivity, normal sensitivity and high sensitivity (adjustable). Provide OEM production.
Technical data:
Power supply: 9V dry battery (standard). Indicator of a low battery.
Work time with alkaline battery: 100 hours max. with a charger.
Optional Lithium-ion battery: 300 hours max. with a charger.
Operating temperature: -20°C ~ 60°C.
Relative humidity: 0 ~ 95% without condensation.
dimension: 342 mm x 81 mm x 61 mm.
Detection distance:  a needle can be detected; 65 mm for 1 dollar RMB coin;
120 mm for a small 77 Pistol; 100 ~ 110 mm for a small knife.
Technical standards:
1. Conform to EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013 product safety international standard. Conform to EN 55011:2009+A1:2010 and EN 61326-1:2013 product safety international standards. Conform to EN61000-3-2:2014 and EN61000-3-3:2013 product safety international standards. 2. Conform to EN 61000-6-1:2007 product immunity international standard and radiation conforms to EN 61000-6-3:2007 +A1:2011+AC:2012 product emission international standard. Be harmless to pregnant women and magnetic recording materials. 3. Conform to existing metal detector GB15210-2003 standard. Conform to U.S.A. FAA 3-gun testing standards and NILECJ-0601-00 safety standards.
