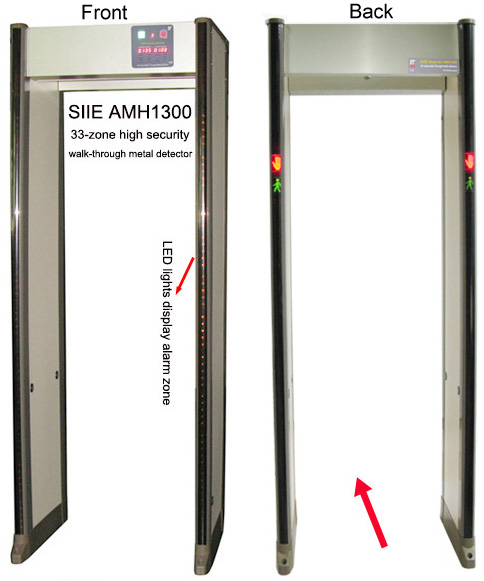

                               SIIE AMH1300 33-zone high security walk-through metal detector

Application:
SIIE AMH1300 33-zone high security multi-zone simultaneous alarm walk-through metal detector can pinpoint any small mass metal & weapon locations on the left, center & right side of a human body. It is used in security inspection and loss prevention, used widely in airport, court, prison, customhouse, gym place, factory, exhibition site, amusement place, and so on. It inspects persons, hand-held luggages & parcels, can locate a small metal, IED-device, weapons, ammunitions, parts of weapons, bombs, etc..

Feature:
1. 33 independent detection zones to precisely identify multiple target locations from head to toe on the left, center and right side of the body. Automatic calculating passer number and alarm number functions, it displays number separately for four digits.
2. Multi-dimensional coil design:
Advanced broadband detection technology provides superior target analysis, ferrous & non-ferrous weapon detection, higher person flow and high discrimination. User's friendly LCD control panel view.
3. LCD Display operation, alarm lights display, LED bar graphs and control touch keys plus all wiring, connections and electronics are integrated into a single lockable overhead compartment which eliminates exposure of wires and external control box.

100-grade sensitivity AMH1300
4. Easy to be assembled:
Its modular design is convenient for a quick and simple assembly, assembled with its four sub-assemblies using only eight screws and three internal electrical connections.
5.
Tamper-Proof:
All settings are secured with a key lock and access codes. Further security is accomplished with a cabinet lock which prevents unauthorized access to physical cables, connectors and electronics. Passcode protection: Multi level authorized code for an administrator or a supervisor to adjust it and view the data in order to keep its security only.
6. Programs and sensitivity:
Thirty-three independent programs, Complete & automatic self-diagnostic program; 100/200-grade sensitivity adjustment. it can offer extra high sensitivity to detect a small metal object. Objective location alarm lights are displayed in two sides of this door.
7. Strong Interference Suppression:
Advanced digital filtering technology and adjustable operating frequencies eliminate the outside potential Interference influence.
8. It has security and prevention loss standard programs in its integration system, meets IP55 standards for moisture and foreign matte protection. At the entrance display universal "wait" and "proceed" symbols for traffic control.

9. Red " palm " shapes are on the two sides of its back, it means when a person walks through it, its alarm is happening and this person is being inspected because of security problem and the illegal metal found on this body, at this time the next following person stops for few seconds, then walks through it for inspection.
10. Green " human walking " shapes are under red " palm " shapes on the two sides of its back, it means when green " human walking " shapes show the green colour, a person can walk through it for inspection.

Technical data:
Overall exterior gate dimensions: 2211 mm (H) * 830 mm (W) * 690 mm (depth). Gate passageway interior dimension: 2000 mm (H) * 700 mm (W)  * 690 mm (depth). No rewiring, switching or adjustments required. Weight: about 70kgs. Working environment: -20° C to 70° C. Humidity: to 95% noncondensing. Power supply: 100 to 240 VAC, 50/60 Hz, 55W. Optional: Backup battery for 7 ~ 8 hours work. Networking ability: remote control (Optional).

Technical standards:
1. Conform to EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013 product safety international standard. Conform to EN 55011:2009+A1:2010 and EN 61326-1:2013 product safety international standards. Conform to EN61000-3-2:2014 and EN61000-3-3:2013 product safety international standards. 2. Conform to EN 61000-6-1:2007 product immunity international standard and radiation conforms to EN 61000-6-3:2007 +A1:2011+AC:2012 product emission international standard. Be harmless to pregnant women and magnetic recording materials. 3. Conform to existing walk-through metal detector GB15210-2003 standard. Conform to U.S.A. FAA 3-gun testing standards and NILECJ-0601-00 safety standards. 4. European CE and EMC international security standard certificates, conform to ECAC international Security standard. Conform to U.S.A. Transportation Security Administration (TSA) standard.
