Product

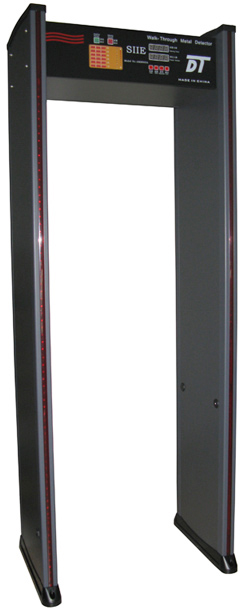

                      SIIE AMH900A high sensitive multi-zone alarm walk-through metal detector

Application:
AMH900A detector is a high sensitive 6-zone walk-through metal detector, when people pass through it, it can detect any small mass metal from head to toe, by hand we can adjust its sensitivities for high sensitivity or low sensitivity to detect a small metal or a big metal, is widely used in loss prevention & security inspection, widely used in airport, court, prison, customhouse, exhibition site, bank, church, embassy, factory, amusement place and so on. It inspects persons, hand-held luggages & parcels and can also locate a small metal, IED-device, weapons, ammunitions, parts of weapons, bomb, etc., and can detect drugs packed with Tin Foil paper. AMH900A detector products have been exported to India, Brazil, South Africa, Italy, Iraq, Iran, Syria, Libya, Mexico, Japan, Malaysia, Vietnam, Thailand and so on for the local customers' use.

Feature:
1. Complete security detection,multi-zone warning displays, very high discrimination and detection speed, high immunity to external interferences, and have high reliability with double alert. Six partition alarm zones from head to toe are displayed in two sides of this door and on its top operation panel. Overall gate sensitivity adjustment for 0~299 grades, and each zone can be individual adjustment sensitivity for 0~299 grades. Have highly visible double alarm display: it can provide the location of weapons in transit.


2. Automatic calculating passer number & alarm number function, LED display digits. Induction to all metals, have an intelligentized recognition processing function. Automatic checking and recovery function, it has six detecting zones in it, such as: zone 1, zone 2, zone 3, zone 4, zone 5, zone 6. When carrying any small mass metal passes through it and it detects this metal, its alarm will be given out, you can get an accurate warning location. Objective location alarm lights are displayed in two sides of this door and on its top operation panel. Adjustment sensitivity by hand.


Technical data:
Power supply: 110V~ 220V (±10%). 50 / 60Hz. Power: 35W. Signal frequency: automatical adjustment. Weight: about 85 kgs. Overall exterior gate dimension: 2230 mm (H) * 820 or 840 mm (W) * 580 mm (depth). Working environment: - 20 ℃ ~ 55 ℃. Gate passageway interior dimension: 2000 mm (H) * 700 or 720 mm (W) * 580 mm (depth). Optional: Communication port RS232 or RS485.

Technical standards:
1. Conform to EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013 product safety international standard. Conform to EN 55011:2009+A1:2010 and EN 61326-1:2013 product safety international standards. Conform to EN61000-3-2:2014 and EN61000-3-3:2013 product safety international standards.  2. Conform to EN 61000-6-1:2007 product immunity international standard and radiation conforms to EN 61000-6-3:2007 +A1:2011+AC:2012 product emission international standard. Be harmless to pregnant women and magnetic recording materials.  3. Conform to existing walk-through metal detector GB15210-2003 standard. Conform to U.S.A. FAA 3-gun testing standards and NILECJ-0601-00 safety standards.  4. European CE and EMC international security standard certificates, conform to ECAC international Security standard. Conform to U.S.A. Transportation Security Administration (TSA) standard.
