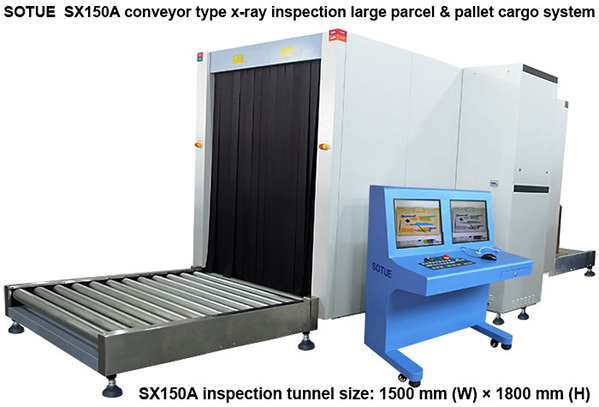

            SX150A conveyor type x-ray inspection large parcel & pallet cargo system


Application:
SOTUE SX150A tunnel conveyor type x-ray inspection baggage, large parcel & cargo system is used for explosives and suspicious dangerous goods inspection, it is widely used in airports, seaports, train stations, Customs, postal parcel inspection, logistics transportation companies, Express companies and other security departments for security checks, etc.. SX150A products have been exported to Georgia, Switzerland, Romania, Russia, the United Kingdom, Brazil, Italy, Canada, France, Spain and so on for local clients' uses. We have provided design and OEM production for some customers in Japan, the United States and Europe.
SX150A system's inspection tunnel size: 1500 mm Width × 1800 mm Height, it can transport the largest air cargo pallets which load the goods for security inspection.

Feature:
1. Use the standards as references, when the machine inspects the goods and finds that there are similar goods, then it will give out a red alarm mark. Two standard 19" LCD monitors and one monitor console.
2. Optional: Network interface, it can connect local area network and support multi-terminal inspection baggage simultaneously.
3. Safer ray: x-ray under automatic control to avoid the leakage. 4. Turn off or turn on by a key control, its operation is very simple.
5. Image function: can clearly observe and enlarge images. Threat Image Projection (TIP) / display: such as guns, knives, bullets, bombs, pistols and so on. Work status display. It is a most widely used system for Aviation Checkpoint and provides outstanding threat detection. Density Threshold Alert ( DTA ) security feature. Language version: English or French.
6. Automatic checking and recovery function. Date and time display. Luggage count. Emergency stop.



Technical data:
Inspection tunnel size: 1500 mm (W) × 1800 mm (H). Conveyor speed: 0.22 m / s. Conveyor maximum load: 2000 Kg. Film safety: for ASA / ISO 1600. Wire resolution: Φ 0.1 mm copper wire, Resolution: 38 AWG. Noise: < 62 DB. Storage temperature: -20 ºC to 60 ºC. Relative humidity: 10% to 90% non-condensing. Operating temperature: 0 ºC to 45 ºC. Max. power consumption: 2.0 KW. Power supply: 110V ~ 220 V (±10%), 50±3Hz. Penetration steel capacity: 32 ~ 34 mm steel plate. Optional: Input conveying length: 2500 mm; exit / output conveying length: 2500 mm. SX150A system's inspection tunnel size: 1500 mm Width × 1800 mm Height, it can transport the largest air cargo pallets which load the goods for security inspection.
X-ray generator:
Orientation: vertically upward. Tube current: 0.6 ~ 1.2 mA (adjustable).  Anode voltage: 160 KV (optional or adjustable). Generator Cooling / Working periods: sealed oil bath with forced air of 100%. High penetration power to all metals. Optional: SX150A dual view system.
Image performance system:
X-ray sensor: L type photo-diode array detector,12 Bit. High resolution two 19” display monitors. Colour quality: 24 Bit real colours. Edge enhancement: object contour edge is more distinct and super image enhancement:its image detail is more distinct. Enlarging: function of enlargement image, high penetration strength display:increase brightness of dark areas in the image to display an object. Low penetration strength display:increase the contrast to display it distinctly. Brightening / dimming: increase brightness of image / decrease brightness of image. Image recurrence: display previous thirty images and process any one of them. Image restoration: restore an image to initial status at the time of stopping the conveyor. Image storing: real time to store any image and process it in operation status. Zoom: Image enlargement up to 32 times. Installation standard hard disk: 500 GB. Standard image storage: 50,000 images, optional: 100,000 images. Display memory capacity: 2.0 GB. Contrast sensitivity: Min. 24 levels. Image Display: Min. 1280 x 1024 bits / pixel, Min. 4096 gray levels. Intel Processor CPU, CPU memory capacity: 2.0 GHz.
Multi-energy function:
1. Multi-energy color: display organic material for orange, display inorganic material for blue and display mixture material for green.
2. High energy / low energy: it displays two energy types, high energy stands for metal etc. and low energy stands for nonmetallic. Assistant inspection functions of drugs and explosives: help to detect such dangerous materials as drugs and explosives, etc..
Technical standards:
1. Conform to EN 60950-1:2006+A2:2013 product safety international standard.  2. Conform to EN 61010-1:2010 product safety international standards.  3. Conform to EN55011:2016 product safety international standard, conform to EN61000-6-2:2005 product immunity international standard.  4. Conform to EN61000-3-2:2014 and EN61000-3-3:2013 product safety international standards.
5. European CE and EMC international security standard certificates. Conform to FAA 3-gun testing standards and NILECJ-0601-00 safety standards. Conform to ECAC international security standard. Conform to U.S. A. Transportation Security Administration (TSA) standard.
