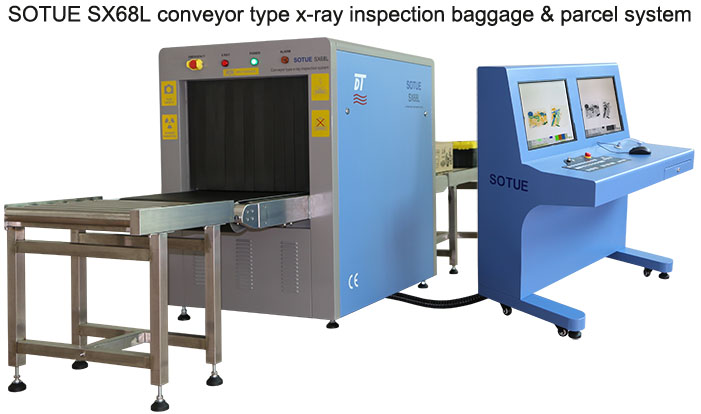

SOTUE SX68L conveyor type x-ray screening inspection baggage & parcel system

SOTUE SX68L tunnel conveyor belt type x-ray inspection baggage and parcel system is widely used for explosives and suspicious dangerous goods inspection, it can be installed in airports, stadiums, casinos, churches, prisons, embassies, mosques, checkpoints, courts, police cars and so on for security inspection, widely used in airports, bus & train stations, public security, embassies, stadiums, casinos, churches, prisons, mosques, courts, checkpoints, customs, postal parcel inspection and security departments for security check and so on.

SX68L products have been exported to Nigeria, Spain, Malaysia, Vietnam, Thailand, India, Turkey, Brazil, South Africa, Iraq, Indonesia, Italy, Mexico and so on for local customers' uses. We have provided its OEM products for our some customers in Europe, the United States and Japan for many years.

1. Use the standards as references, when the machine inspects the goods and finds that there are similar goods, then it will give out a red alarm mark. Monitor: One 19" color monitor. Optional: two 19" monitors and one monitor console.
2. Optional: Network interface, it can connect local area networks and support multi-terminal inspection baggage simultaneously.
3. Safer ray: x-ray under automatic control to avoid the leakage. 4. Turn off or turn on by a key control, its operation is very simple.

 5. Image function: can clearly observe and enlarge images. Threat Image Projection (TIP) displays: such as guns, knives, bullets, bombs, pistols and so on. Work status display. It is a most widely used system for Aviation Checkpoint and provides outstanding threat detection. Density Threshold Alert ( DTA ) security feature.

 6. Its operating system is French or English language for your choice. Automatic checking and recovery function. Date & time display. Password control. Luggage count. Emergency stop.


Technical data:
Inspection tunnel size: 650 mm (W) × 500 mm (H). Conveyor speed: 0.22 m / s. Conveyor max. load: 170 Kg. Storage temperature: -20 ºC to +65 ºC. Operating temperature: 0 ºC to +45 ºC. Relative humidity: +10% to +95% non-condensing. Power wastage: 800 W. Noise: < 60 DB.

Power supply: 110 V ~ 220 V (±10%), 50±3Hz. Multi-energy. Wire resolution: Φ 0.1 mm copper wire. Film safety: for ISO 1600. Resolution: 38 AWG. Penetration capacity: 30 mm steel plate, optional: 42 AWG, penetration capacity: 39 mm steel plate.

Optional: Input conveying length: 1000 mm; output conveying length: 2500 mm. SX68L system products have two types and colors for your option.
Optional: Inspection tunnel size: 700 mm (W) × 560 mm (H), conveyor speed: 0.22 m / s, conveyor Max. load: 170 Kg.

X-ray generator:
Orientation: vertically upward. Tube current: 0.5 ~ 1.2 mA ( adjustable ). Anode voltage: 140 ~ 160 KV ( optional or adjustable ). Angle: 80 degree. Generator Cooling / Working periods: sealed oil bath with forced air of 100%. High penetration power to all metals. Optional: SX68L dual view system.

Image performance system:
X-ray sensor: L type photo-diode array detector, 16 Bit. Monitor: high resolution 19" colour LCD monitor. Colour quality: 24 Bit real colours. Edge enhancement: object contour edge is more distinct and super image enhancement: image details are more distinct. Enlarging: function of enlargement image, high penetration strength display: can increase brightness of dark areas in the image to display an object, low penetration strength display: increase the contrast to display it distinctly. Dimming / brightening: increase brightness of image / decrease brightness of image. Image recurrence: can display previous twenty images & process any one of them.

Image restoration: can restore images to initial status at the time of stopping the conveyor. Image storage: real time to store any image and process it in operation status. Zoom: Image enlarges up to 32 times, optional: 64 times.

Standard storage images: 50,000 images, optional: 100,000 images. Installation standard hard disk: 500GB. Display memory capacity: 2.0 GB. Image display: Min. 1280 x 1024 bits / pixel, Min. 4096 gray levels. Contrast sensitivity: Min. 24 levels. Cycle operation. Processor CPU: Intel Celeron, optional CPU: ARM Cortex A9.

 Multi-energy function:
1. Multi-energy color: display organic material for orange, display inorganic material for blue and display mixture material for green
2. High energy / low energy: it can display two energy type, high energy stands for metal etc. & low energy stands for nonmetallic. Assistant inspection functions of drugs and explosives: help to detect such dangerous materials as drugs and explosives, etc.

Technical standards:
1. Conform to EN 60950-1:2006+A2:2013 product safety international standard.  2. Conform to EN 61010-1:2010 product safety international standards.

3. Conform to EN55011:2016 product safety international standard, conform to EN61000-6-2:2005 product immunity international standard.

4. Conform to EN61000-3-2:2014 and EN61000-3-3:2013 product safety international standards.

5. European CE and EMC international security standard certificates. Conform to FAA 3-gun testing standards and NILECJ-0601-00 safety standards. Conform to ECAC international security standard. Conform to U.S. A. Transportation Security Administration (TSA) standard.
