Product

Model No. SX100SA and SX100S conveyor type x-ray inspection baggage, parcel and cargo systems as follows: SX100SA inspection tunnel size: 1,005 mm width x 1,005 mm height; SX100S inspection tunnel size: 1,000 mm width x 800 mm height.

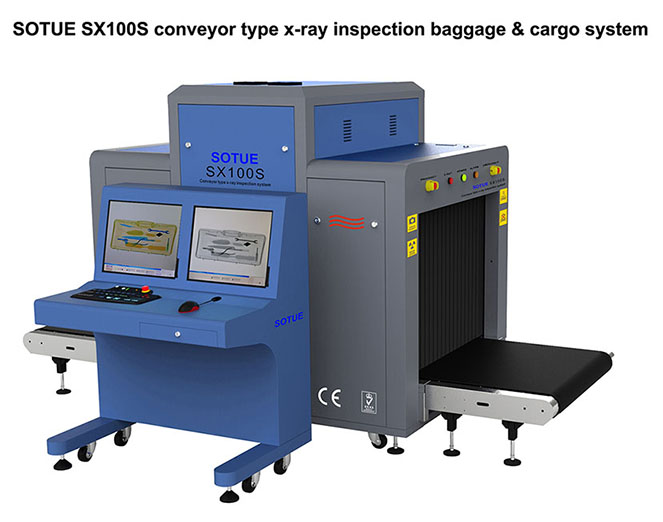

                 SOTUE SX100S conveyor type x-ray screening inspection baggage & cargo system

Application:
SOTUE SX100S conveyor type
x-ray inspection baggage and parcel system is used for explosives and suspicious dangerous goods inspection, can be installed in airports, bus & train stations and so on for inspection, widely used in bus & train stations, airport, troops, Customs, postal parcel inspection and other security departments for security checks, etc.. SX100S products have been exported to Iraq, Spain, Nepal, Congo, Iran, Syria, Libya, Russia, Georgia, Barbados, Qatar, India, Indonesia, Turkey, Uzbekistan, Laos, Philippines, Oman, Slovenia, Switzerland, Romania, Croatia, United Kingdom, Luxemburg, Moldova, Sweden, Bolivia, Brazil, Italy, Canada, Columbia, Algeria, Morocco and so on for local clients' uses. We provide OEM production for some customers in Japan, the United States and Europe for many years.

Feature:
1. Use the standards as references, when the machine inspects the goods and finds that there are differences, then it will give out a sound and light alert. Two standard 19" LCD monitors & one monitor console.
2. Optional: Network interface, it can connect local area networks and support multi-terminal inspection baggage simultaneously.
3. Safer ray: x-ray under automatic control to avoid the leakage. 4. Turn off or turn on by a key control, its operation is very simple.
5. Image function: can clearly observe and enlarge images. Threat Image Projection ( TIP ) / display: such as, guns, knives, bullets, bombs, pistols and so on. Work status display. It is a most widely used system for Aviation Checkpoint and provides outstanding threat detection. Density Threshold Alert ( DTA ) security feature. Its operating system is French or English language for your choice.
6. Automatic checking and recovery function. Date and time display. Luggage count. Emergency stop.



Technical data:
Inspection tunnel size: 1000 mm (W) × 800 mm (H), conveyor speed: 0.22 m / s, conveyor maximum load: 220 Kg. Noise: < 60DB. Wire resolution: Φ 0.1 mm metal wire. Film safety: for ISO 1600. Storage temperature: -20 ºC to 60 ºC. Operating temperature: 0 ºC to 45 ºC. Power consumption: maximum 1.0 KVA. Relative humidity: 10 to 95% non-condensing. Power supply: 110V ~ 220 VAC (±10%), 50±3Hz. IP55. Penetration capacity: 32 ~ 34 mm steel plate, resolution: 38 AWG. Optional: penetration capacity: 38 mm steel plate, resolution: 38 ~ 40 AWG. Optional: Input conveying length: 1000 mm; exit / output conveying length: 2500 mm.
X-ray generator:
Orientation: vertically upward. Tube current: 0.5 ~ 1.2 mA ( adjustable ). Anode voltage: 140 ~ 160 KV ( optional or adjustable ). Angle: 80 degrees. Generator Cooling / Working periods: sealed oil bath with forced air of 100%. High penetration power to all metals. Optional: SX100S dual view system.

Image performance system:
X-ray sensor: L type photo-diode array detector, 16 Bit. Two high resolution 19” LCD dual monitors. Color quality: 24 Bit real colors. Edge enhancement: object contour edge is more distinct, and super image enhancement: image detail is more distinct. Enlarging: function of enlargement image, and high penetration strength display: increase brightness of dark areas in the image to display an object. Low penetration strength display:increase the contrast to display it distinctly. Brightening / dimming: increase brightness of image / decrease brightness of image. Image recurrence: can display previous twenty images and process any one of them. Image restoration: restore an image to initial status at the time of stopping the conveyor. Image storage: real time to store any image and process it in operation status. Zoom: enlargement Image to 32 times, optional 64 times. Standard storage image: 50,000 images, optional 100,000 images. Installation standard hard disk: 500 GB. Display memory capacity: 2.0 GB. Processor CPU: Intel Celeron, optional CPU: ARM Cortex A9. Contrast sensitivity: Min. 24 levels. Image display: Min. 1280 x 1024 bits/pixel, Min. 4096 gray levels. Cycle operation: 100% without warm-up time.
Multi-energy function:
1. Multi-energy color: display organic material for orange, display inorganic material for blue and display mixture material for green.
2. High energy / low energy: it displays two energy types, high energy stands for metal etc. and low energy stands for nonmetallic. Assistant inspection functions of drugs and explosives: help to detect such dangerous material as drugs and explosives, etc..
Technical standards:
1. Conform to EN 60950-1:2006+A2:2013 product safety international standard.  2. Conform to EN 61010-1:2010 product safety international standards.  3. Conform to EN55011:2016 product safety international standard, conform to EN61000-6-2:2005 product immunity international standard.  4. Conform to EN61000-3-2:2014 and EN61000-3-3:2013 product safety international standards.
5. European CE and EMC international security standard certificates. Conform to FAA 3-gun testing standards and NILECJ-0601-00 safety standards. Conform to ECAC international security standard. Conform to U.S. A. Transportation Security Administration (TSA) standard.

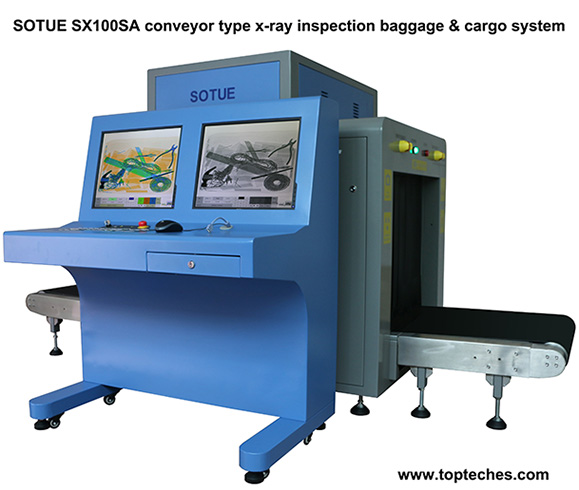

                    SOTUE SX100SA conveyor type x-ray inspection baggage & cargo system

Application:
SOTUE SX100SA tunnel type x-ray inspection baggage and parcel system is used for explosives and suspicious dangerous goods inspection, can be installed in airports, bus & train stations and so on for inspection, widely used in airportsbus & train stations, troops, public security, Customs, postal parcel inspection and other security departments for security checks, etc.. SX100SA products have been exported to Kazakhstan, Turkmenistan, Germany, Kampuchea, Malaysia, Qatar, United Arab Emirates, Tajikistan, Bhutan, Ireland, San Marino, Lithuania, France, Hungary, Croatia, Nicaragua, Greece, Saint Lucia, Panama and so on for local clients' uses. We provide design and OEM production for some customers in Japan, the United States and Europe.

Feature:
1. Use the standards as references, when the machine inspects the goods and finds that there are differences, then it will give out a sound and light alert. Two standard 19" LCD monitors & one monitor console.
2. Optional: Network interface, it can connect local area networks and support multi-terminal inspection baggage simultaneously.
3. Safer ray: x-ray under automatic control to avoid the leakage. 4. Turn off or turn on by a key control, its operation is very simple. Density Threshold Alert (DTA) security feature.
5. Image function: can clearly observe and enlarge images. Threat Image Projection (TIP) / display, such as: guns, knives, bullets, bombs, pistols and so on. Work status display. It is a most widely used system for Aviation Checkpoint and provides outstanding threat detection. Its operating system is French or English language for your choice.
6. Automatic checking and recovery function. Date and time display. Luggage count. Emergency stop.



Technical data:
Inspection tunnel size: 1005 mm (W) × 1005 mm (H), conveyor speed: 0.22 m / s, conveyor maximum load: 230 Kg. Noise:< 60DB. Wire resolution: Φ 0.1 mm metal wire. Film safety: for ISO 1600. Storage temperature: -20 ºC to 60 ºC. Operating temperature: 0 ºC to 45 ºC. Power consumption: maximum 1.2 KVA. Relative humidity: 10 to 95% non-condensing. Power supply: 110V ~ 220 VAC (±15%), 50±3Hz. Penetration capacity: 32 ~ 34 mm steel plate. Resolution: 38 ~ 40 AWG. Optional: resolution: 40 AWG, penetration steel capacity: 38 mm. Optional: Input conveying length: 1000 mm; exit / output conveying length: 2500 mm.

X-ray generator:
Orientation: vertically downward. Tube current: 0.5 ~ 1.2 mA (adjustable). Angle: 80 degrees. Anode voltage: 160 KV, optional: 160 ~ 180 KV (adjustable). Generator Cooling / Working periods: sealed oil bath with forced air of 100%. High penetration power to all metals. Optional: SX100SA dual view system.

Image performance system:
X-ray sensor: L type photo-diode array detector, 16 Bit. Two high resolution 19” LCD dual monitors. Color quality: 24 Bit real colors. Edge enhancement: object contour edge is more distinct, and super image enhancement: image detail is more distinct. Enlarging: function of enlargement image, and high penetration strength display: increase brightness of dark areas in the image to display an object. Low penetration strength display:increase the contrast to display it distinctly. Brightening / dimming: increase brightness of image / decrease brightness of image. Image recurrence: can display previous twenty images and process any one of them. Image restoration: restore an image to initial status at the time of stopping the conveyor. Image storing: real time to store any image and process it in operation status. Standard enlargement image to 32 times, optional: 64 times. Standard storage image: 50,000 images, optional: 100,000 images. Installation standard hard disk: 500 GB. Display memory capacity: 2.0 GB. Contrast sensitivity: Min. 24 levels. Image display: Min. 1280 x 1024 bits/pixel, Min. 4096 gray levels. Cycle operation: 100% without warm-up time. Processor CPU: Intel Pentium, optional CPU: ARM Cortex A9 .

Multi-energy function:
1. Multi-energy color: display organic material for orange, display inorganic material for blue and display mixture material for green.
2. High energy / low energy: it displays two energy types, high energy stands for metal etc. and low energy stands for nonmetallic. Assistant inspection functions of drugs and explosives: help to detect such dangerous material as drugs and explosives, etc..

Technical standards:
1. Conform to EN 60950-1:2006+A2:2013 product safety international standard.  2. Conform to EN 61010-1:2010 product safety international standards.  3. Conform to EN55011:2016 product safety international standard, conform to EN61000-6-2:2005 product immunity international standard.  4. Conform to EN61000-3-2:2014 and EN61000-3-3:2013 product safety international standards.
5. European CE and EMC international security standard certificates. Conform to FAA 3-gun testing standards and NILECJ-0601-00 safety standards. Conform to ECAC international security standard.
Conform to U.S. A. Transportation Security Administration (TSA) standard.
