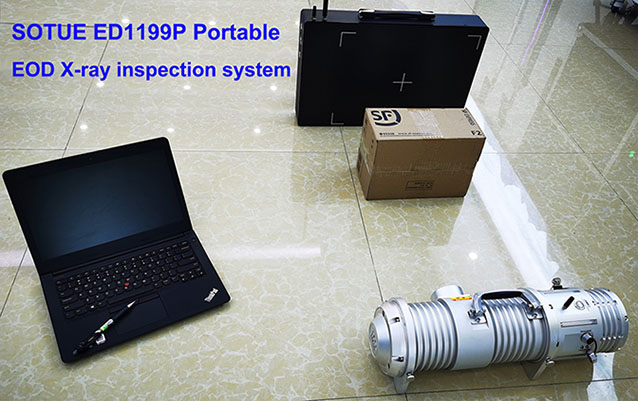

                      SOTUE ED1199P Portable EOD X-ray inspection system

Application:
SOTUE ED1199P EOD X-ray inspection system has strong penetration power and clear imaging and can quickly and effectively detect dangerous goods such as weapons & explosives hidden in packages & daily items and also detect other prohibited items such as knives, water pipes etc.. It provides fast and accurate security inspection methods for relevant departments such as counter-terrorism, explosive ordnance disposal, investigation, anti-smuggling, anti-drug and item identification.


Feature:
1. Clear imaging: Clear dual energy imaging can effectively distinguish inorganic substances, organic substances and mixtures, with a 16 bit gray level and a contrast ratio is 200 times higher than that of integrated portable X-ray machines.
2. Strong penetration power: can penetrate a 60 mm aluminum plate and a 6 mm steel plate.





3. Wide field of view: scan area size can reach 420 mm x 300 mm. Optional: customized services can be provided according to requirements.
4. Wireless connection: Devices communicate wirelessly without interference, allowing for quick on-site assembly and deployment, effectively ensuring the safety of testing personnel. The maximum control distance can reach over 30 meters.



Technical data::
X-ray source: about 14Kg (including battery).
X-ray source size: approximately 517.9 mm (L) x 185.2 mm (W) x 204.8 mm (H).
Detection box size: approximately 552.8 mm (L) x 85.2 mm (W) x 375.9 mm (H).


Max. Penetration power: 60 mm aluminum plate, 6 mm steel plate.

Spatial resolution: Φ 0.101 mm metal wire, 38 AWG.
Wireless WiFi transmission distance: over 30 meters.
Work temperature: -15(±3) ~ 52 ℃.  Work humidity: ≤ 93(±3)%.
Max. effective detection distance between the detection box and X-ray scanner is 1,200 mm.

X-ray source:
Tube voltage: continuously adjustable from 80 KV to 120 KV.
Tube current: continuously adjustable from 0.5 mA to 1.0 mA.
Light source power: 0.12 KVA.
Cooling method: oil cooling.
Power supply: AC power supply 110V ~ 220V (±10%), with built-in nickel hydrogen battery.
Power supply: Ultra large capacity lithium battery with a range of more than 4 hours of normal use.

Detection box:
Motor speed: continuously adjustable for 3 ~ 10 seconds.
Detector size: 0.8 mm CsI crystal linear array scanning detector, really reproduces the inspected item.

Detection box size: approximately 552.8 mm (L) x 85.2 mm (W) x 375.9 mm (H).
Scan area: 420 mm x 300 mm. Optional Scan Area: 500 mm x 400 mm or 650 mm x 460 mm.


Power: 10W.
Power supply: The lithium battery has a capacity of 6,600 mA and can continuously detect approximate 400 bags and suitcases.

Notebook computer:
Computer configuration: Intel Core i5 processor. Memory capacity of 4G. Hard disk capacity of 500G. Built-in DVD-RW burning optical drive. 14.1 " TFT LCD screen, 1G independent graphics card.


Technical standards:
1. Conform to EN 60950-1:2006+A2:2013 product safety international standard.
2. Conform to EN 61010-1:2010 product safety international standards.
3. Conform to EN55011:2016 product safety international standard, conform to EN61000 -6-2:2005 product immunity international standard.
4. European CE and EMC international security standard certificates. Conform to FAA 3-gun testing standard.
