Product

Application:

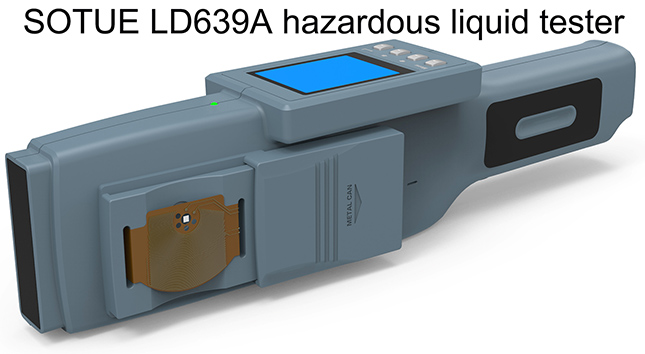

SOTUE LD639A handheld hazardous liquid tester is a security inspection instrument used to detect flammable and explosive liquids. It can quickly identify flammable and explosive liquids without touching liquids and is widely used in security inspections at airports, government agencies, stations, subways, large sport meets and other venues.

Feature:

Adopting technology: Electromagnetic detection technology. Quick detection: Fast detection speed.
Weight of the whole machine: about 0.2Kg, compact and lightweight, easy to carry.
Wide detection range: can detect 234 types of flammable and explosive hazardous liquids.

Data storage: Provides storage and retrieval functions for liquid detection results, storage capacity of no less than 10,000 tests, and can export data through a USB interface.
Alarm methods: buzzer alarm and display alarm.

Function:

Types of hazardous liquids that can be detected as follows:

Diesel oil, kerosene, petroleum ether, propylene oxide, methanol, n-hexane, ether, cyclopentane, cyclohexane, toluene, propionaldehyde, isooctane, n-pentane, isopropyl ether, gasoline (95 #, 92 #, 97 #, 93 #), ethanol (70%), pine perfume (paint solvent), pine perfume (welding aid), banana water (Tianna water), acrylic paint, paint curing agent, chloroform, benzene, sulfuric acid (20 ℃), xylene, n-octane, n-heptane, turpentine, isopropanol (70%), nitrobenzene, nitric acid, sodium hydroxide aqueous solution (50%), hydrochloric acid, potassium hydroxide aqueous solution (50%), carbon disulfide, 30% hydrogen peroxide, acetone, 40% acetaldehyde aqueous solution, allyl chloride, methylamine alcohol solution, paint thinner (nitro thinner solvent), cyclopentene, methylcyclohexane, n-pentene (1-pentene), chlorobenzene, 1,2-dichloroethylene, isobutyl acetate, octene (1-octene) Isopropyl nitrate, ethyl butyrate, thiophene, cyclohexene, pyrrolidine, methyl ethyl ketone (butanone), 1,3,5-trimethylbenzene, 2-chloropropane, 3-aopropyne, trifluorotoluene, ethylbenzene (ethylbenzene), chloroisopropanol, 1,2-dichloropropane, aniline, dichloromethane, chloropentane (1-chloropentane), bromobutane, 1-chlorobutane, nitroethane, 1-bromopropane, carbon tetrachloride, chloropropene chloride, isopentanol, bromopropene, butyraldehyde (n-butyraldehyde), isobutyraldehyde, acrolein, n-pentanal, Pentyl formate, Isoamyl formate (isopentyl formate), isobutanol, sec butanol, 2-methyl-3-butyn-2-ol, butyl vinyl ether, 2-pentanone, 2-methyl-3-pentanone, butanedione (2,3-butanedione), ethylacryl ether, butyl ethyl ether, ethylene glycol, vinyl ether, vinyl isobutyl ether, methyl formate, epoxybutane (1,2-epoxybutane), ethyl formate, butyl formate (n-butyl formate), isobutyl formate, 1,4-dioxane, acetonitrile, butyl butyrate, ethyl acrylate, trichloroethylene, ethyltriethoxysilane, methyl acetate (methyl acetate), nitromethane, ethyl acetate (ethyl acetate), propyl acetate (n-propyl acetate), and so on, total 234 types of flammable and explosive hazardous liquids, non-flammable and explosive liquids, water (including beverages and other non-flammable liquids), etc.

Technical data:
Non-metallic container inspection:
Detection time: 1.2 seconds.
Detection bottle volume: >50 ml.
Detection bottle thickness: <3.5 mm.
Liquid detection capacity: The liquid in the bottle must be not less than 6cm deep.
Testing container material: non-metallic containers such as plastic / glass / ceramic.

Metal container inspection:
Detection time: 4 seconds.
Detection bottle volume: >50 ml.
Detection bottle thickness: <0.3 mm.
Liquid detection capacity: The liquid in the bottle must be not less than 3cm deep.
Testing container material: Metal containers such as aluminum / iron.

Power-up self-calibration time: 1 second
Container materials which can be detected: metal, non-metal.
Detecting liquid temperature: 5 ℃ ~ 40 ℃ (liquid can't be solidified into solid).
Composition: Host, charging base, etc.
Dimension: 305 mm (L) x 59.5 mm (W) x 76 mm (H).
Accessories: TYPE C interface charger.
Weight: Approximately 470g (including battery weight)
Power consumption: <10W.
Human computer interface: Provide a fully Chinese or English interface with a self luminous OLED screen display.
Detectable container size: not less than 5.5 cm x 1.5 cm, minimum capacity 50 ml.

Usage environment:
Work temperature: -10 ℃ ~ +55 ℃.
Work humidity: 0% to 90%.
Charging power supply: Input AC 100~240V, 50~60Hz, Output: 5V / 2.1A.
Atmospheric pressure: 86kPa~106kPa.

Technical standards:
1. Conform to EN60950-1:2006+A12:2011+A2:2013 and EN61326-1:2013 product safety international standards.

2. Conform to EN 61000-6-1:2007 product immunity international safety standard.

3. Conform to EN61010-1:2010 and EN55011:2009+A1:2010 international security standards.

4. Conform to EN61000-3-3:2013 and EN61000-3-2:2014 international security standards.
5. Have European CE and EMC international security standard certificates.
