Optional 200watts, 400watts, 800watts, 1000watts or 1500watts high power stadium light as follows:

                     SOTUE LD48200SL LED stadium light

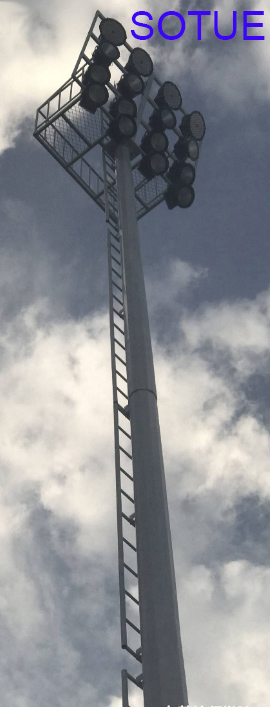

35 meter high pole light for stadium use. Optional: 20 / 25 / 35 meter high pole light for stadium uses, widely used in streets, stadiums, roads, bridges and so on.

Technical data and feature:

1. High pole lamp material: high-quality Q235 hot-dip galvanized carbon steel.
2. Height of high pole lamp: 35 meters.
3. Selection of lifting system: with manual ladder.
4. Selection of floor cage: including floor cage.
5. Electroplating process: hot-dip galvanizing.
6. Surface treatment: Painting.
7. Light source type: LED light source.
8. Light source power: 48 x 200 watts.
9. Number of lamp pole segments: 4 pieces.
10. Section thickness of lamp pole: 12mm + 10mm + 8mm + 6mm.
11. Upper diameter (mm): 240.
12. Lower diameter (mm): 580.
13. Bottom plate diameter (mm): 820.
14. Bottom plate thickness (mm): 20.

15. Power supply: AC 110V ~ 220V (+/-10%), 50 / 60Hz.

As shown in the picture, each big LED light is 200 watts, which is waterproof. Total is 48 big LED lights

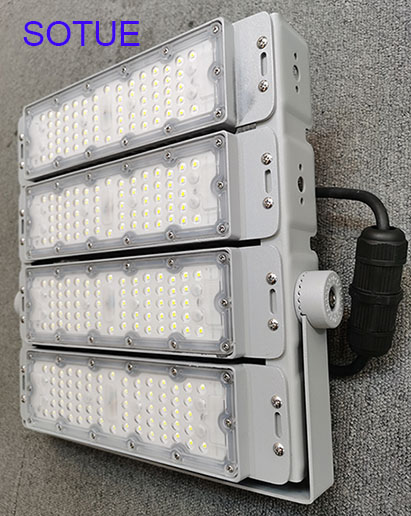

As shown in the picture, there are four rows of small LED lights inside each big LED light, which are used outdoors. 16. Big LED light weight: 4.5 kgs.



Technical standards:
1. Conform to EN60950-1:2006+A11:2009 electrical product safety international standard.
2. Conform to EN55011:2009 & EN61326-1:2006 product safety international standards.
3. Conform to EN61000-3-2:2006+A2:2009 and EN61000-3-3:2008 product safety international standards.
4. Conform to EN61000-6-1:2007 product immunity international standard.
5. Radiation conforms to EN61000-6-3:2007 product emission international standard.

6. Have European CE and EMC international safety standard certificates.

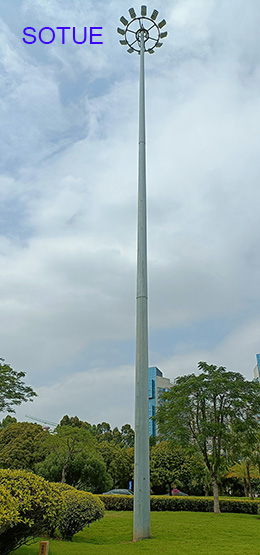

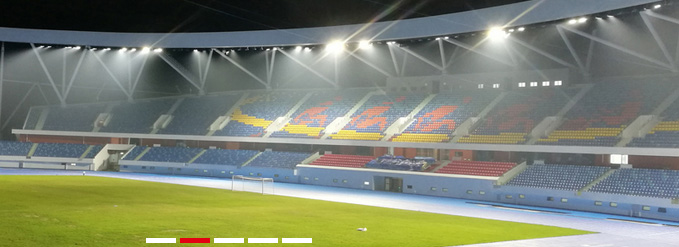

 As shown in the picture as follow for a normal stadium use for your reference:

Optional:

Optional 400 watts LED stadium light:

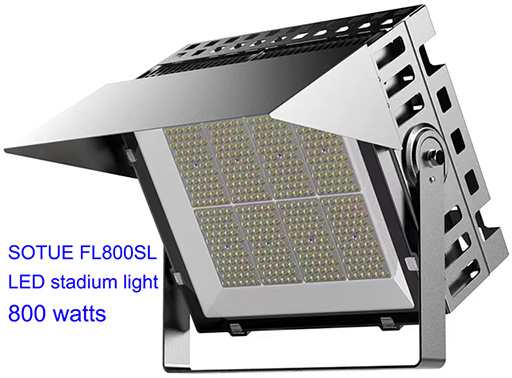

SOTUE FL800SL LED stadium light
800 watts.
Dimension: 511 mm x 589 mm x 211mm.
Voltage: AC 110V~240V 50 / 60Hz.
Protection level: IP65.
Have European CE and EMC international safety standard certificates.

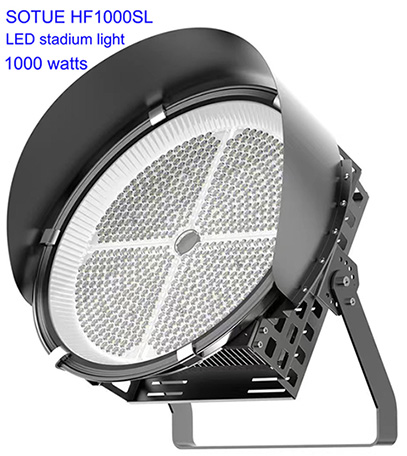

SOTUE HF1000SL LED stadium light
1000 watts.
Dimension:529 mm x 481 mm x 296 mm.
Voltage: AC 110~240V 50 / 60Hz.
Protection level: IP65.
Have European CE and EMC international safety standard certificates.

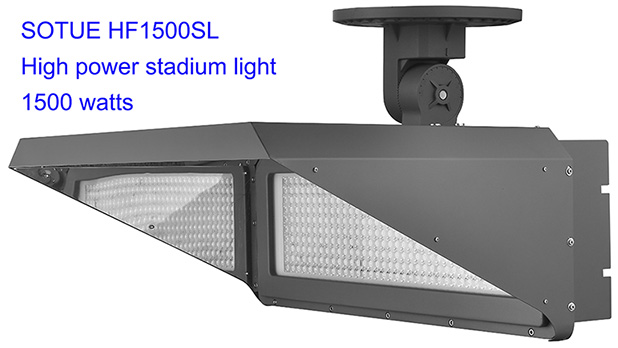

SOTUE HF1500SL High power stadium light
1500 watts.
Voltage: AC 100V~240V, 50 / 60Hz.
Dimension: (L) 668 mm x (W) 271 mm / 339 mm (with bracket height) x (H) 141 mm / 579 (with non-glare hat).
IP level: IP66.
Hoisting type or standing type.
Have European CE and EMC international safety standard certificates.

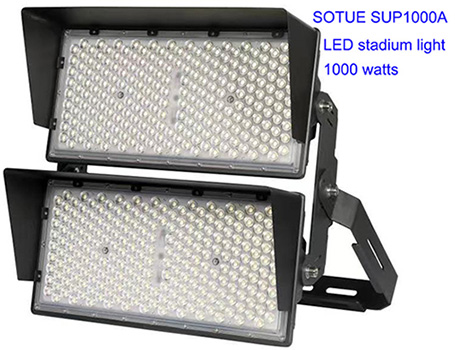

SOTUE SUP1000A LED stadium light
Application
Indoor and Outdoor stadiums and sport fields.
Technical data:
Power: 1,000 watts.
Chip: Philips.
Luminous Efficiency: 140 LM/W.
Input Voltage AC 85 - 265 V.
Beam Angle: 15°, 30°, 45°, 60°
Ra.＞70.
C.C.T.: 5,700 K or as Required.
IP Rating: IP 65.
Power Frequency: 50Hz～60Hz.
Surge Protection: 10 KV or as Required.
Size: 500 mm x 520 mm x 266 mm.
Net Weight: 26.9 Kgs.
Have European CE and EMC international safety standard certificates.
